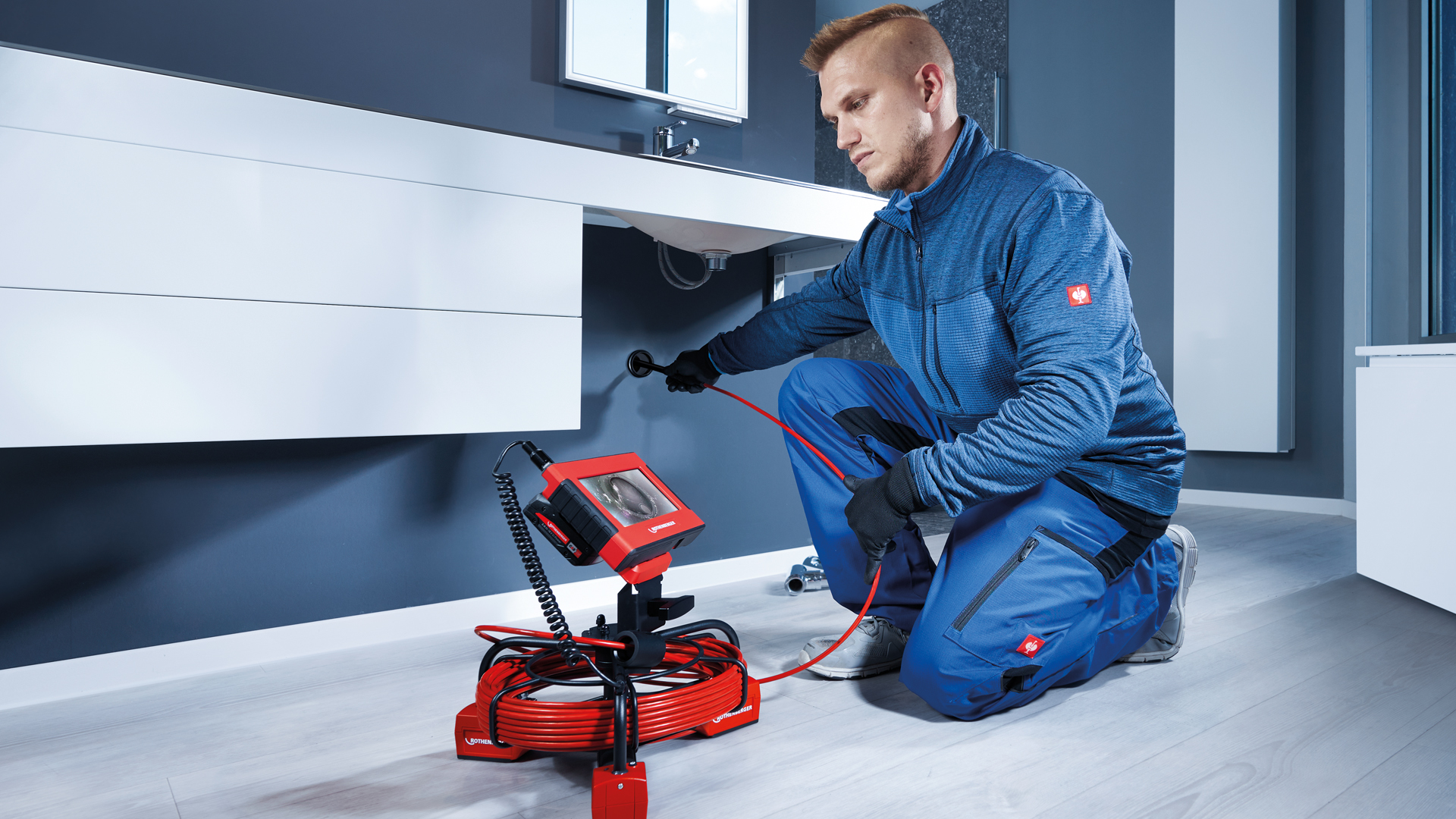

The ROCAM mini HD - Module 25/22 HD is the successor product of the ROSCOPE i2000. It is designed for the inspection of pipes in domestic and residential areas with pipes of Ø40-110mm. The high quality HD image enables precise inspection and simplifies the analysis of the asset. On the device itself, the leakage or blockage can be marked directly in the image. This saves time in post-processing. Thanks to the app compatibility, the customer can be informed about the own work via live stream and data can be forwarded quickly and easily. Thanks to 22m cable length and optimized cable stiffness, even multi-story family homes can be inspected in one inspection process. This saves time-consuming set-up time.

Intuitive operation, simple documentation and new connectivity concept

All functions of the ROCAM mini HD can be selected via the 7-inch touch screen. The operation is intuitive. Leaks or blockages in the pipe can be marked directly in the image and recorded quickly and easily with the help of a damage catalogue. Since the touchscreen reacts to pressure, this also operates with work gloves. Working outdoors is no problem because the housing is waterproof.

The accompanying app has a livestream function that allows the image of the ROCAM mini HD to be mirrored on a mobile device. This allows the end customer to be professionally involved in the inspection process. In addition, the recorded images and videos can be downloaded directly to the mobile device and forwarded. This saves time in post-processing.

These advantages are offered by the ROCAM mini HD pipe inspection camera:

• HD image quality with a resolution of 1920 x 1080 pixels for fast and precise detection of damage and blockages in the pipe.
• 7" full-HD resistive touch display for easy operation even with work gloves on
• Numerous documentation functions with damage catalogue for damage analysis directly on site
• Diverse app functions for documentation and livestream for iOS and Android save time and ensure a professional appearance with the customer
• Optimised cable stiffness and camera head geometry for passing up to six 90° bends (50 mm pipes) or three 90° bends (40 mm pipes)
• 22 m cable for long range application even over several floors
• Suitable for pipes of all nominal sizes from DN40 to DN100

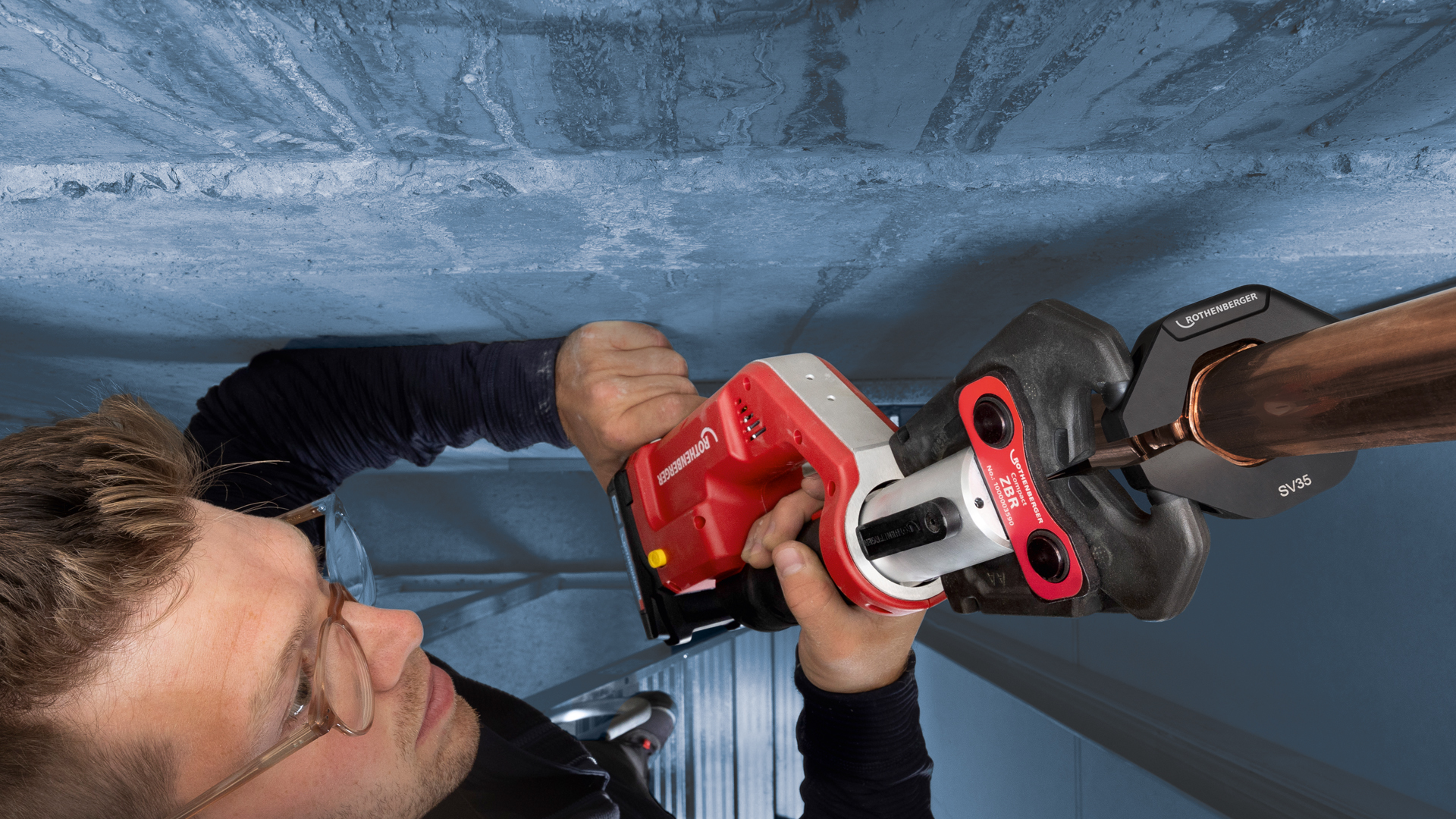

Press rings in new contoursSafe pressing in narrow and difficult places

Pressing technology is an important pillar in the ROTHENBERGER portfolio and countless press connections are made every day on construction sites around the world as well. The new ROTHENBERGER press rings make the work easier, especially in narrow and difficult places, such as wall openings, shafts and angled pipe connections. New in the range are SV contour press rings for all common pipe diameters. Further press rings in the contours M, TH and U will follow at the beginning of 2023. This means that professional users are ideally equipped for every pressing challenge.

Flexible, compact and light - comfortable working in complex situations

Pressing ensures inseparable connections of metal pipes such as copper, stainless steel and carbon steel as well as plastic and multi-layer composite pipes. Nowadays, pressing technology as an easy-to-use and cost-effective method often replaces soldering and welding. With the ROTHENBERGER pressing rings in all sizes, safe and quick pressing is no longer a problem, even in confined spaces and close to the wall.

These advantages are offered by the new ROTHENBERGER press rings:

• 180° swivel allows freely adjustable position of the pressing machine
• Compatibility with Compact and Standard intermediate jaws
• DURA LAZR TEC for 40% greater hardness and 100% more pressing cycles
• Flame-free joint: No more open flame processing required
• Secure sealing: Reliable and permanent connection due to 3-point compression
• Fast, simple and cost-effective installation

Perfectly simple: check manually, document digitally!

When building new pipelines and after repairs to existing systems, leak testing is essential. Because only leak-proof pipelines are safe pipelines. And that is important in case damage does occur. Better safe than sorry.

Until now, there were basically two options: uncomplicated testing, but time-consuming documentation by hand, or testing with highly sensitive and cost-intensive digital pressure testing equipment and creating a digital test report.

Now, for the first time, there is the perfect combination of both for testing water-bearing pipes!

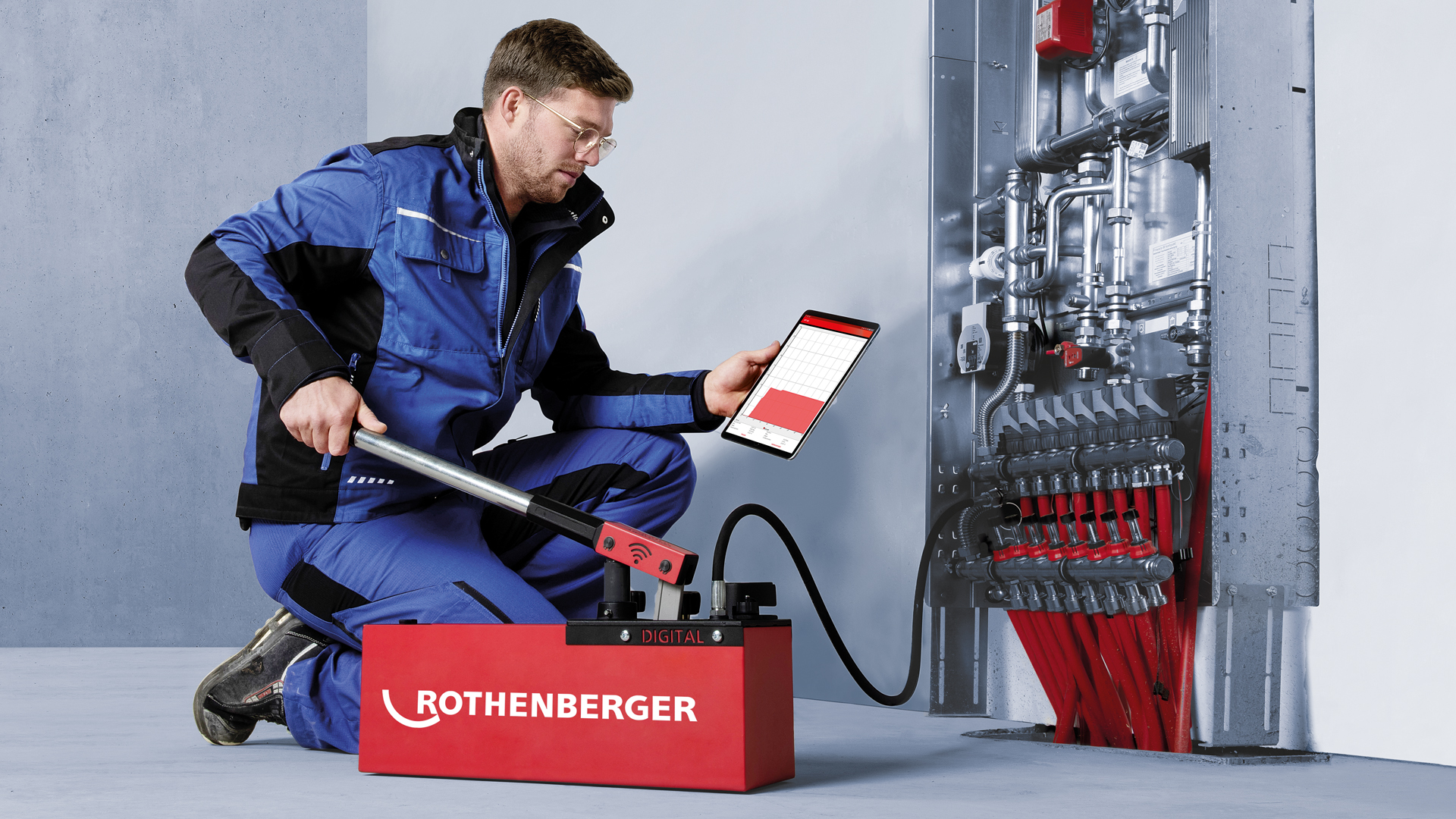

With the RP 50 Digital, HVAC professionals have the advantages of the simple handling and robustness of a normal test pump plus the advantages of digital documentation at their fingertips. Simply convenient.

Robust, simple and with additional digital features for safe testing

Just like its predecessor, the new RP 50 Digital test pump consists of a DURAMANT-coated steel tank and a test hose with ½" connection reinforced with steel mesh. This makes the test pump particularly robust and durable. It is also just as easy to transport with the help of the lever.

The proven TwinValve system also ensures accurate measurement with the RP 50 Digital and enables self-testing. But unlike the RP 50-S test pump, the pressure gauge of the RP 50 Digital is supplemented by a digital pressure sensor. This enables an even more precise measurement up to 30 bar.

The pressure curve can be monitored on mobile devices via Bluetooth. After the measurement, the app generates a protocol for reliable proof that the test was carried out correctly: fast, safe, convenient.

These features distinguish the RP 50 Digital:

• Integrated digital pressure sensor for precise testing and pressure adjustment up to 30 bar

• Complete documentation and visualisation of the pressure testing process via app

• Simple and tamper-proof creation of a pressure test protocol

• Torsion-resistant and lockable lever with ergonomic handle also serves as carrying handle

• TWIN VALVE system with two valves for double safety when testing the system

• Robust DURAMANT coating with 5-year guarantee against corrosion

• Optional additional pressure gauge with fine scaling 0.2 bar for high-precision measurements for the range up to 16 bar

Uncomplicated and universally applicable

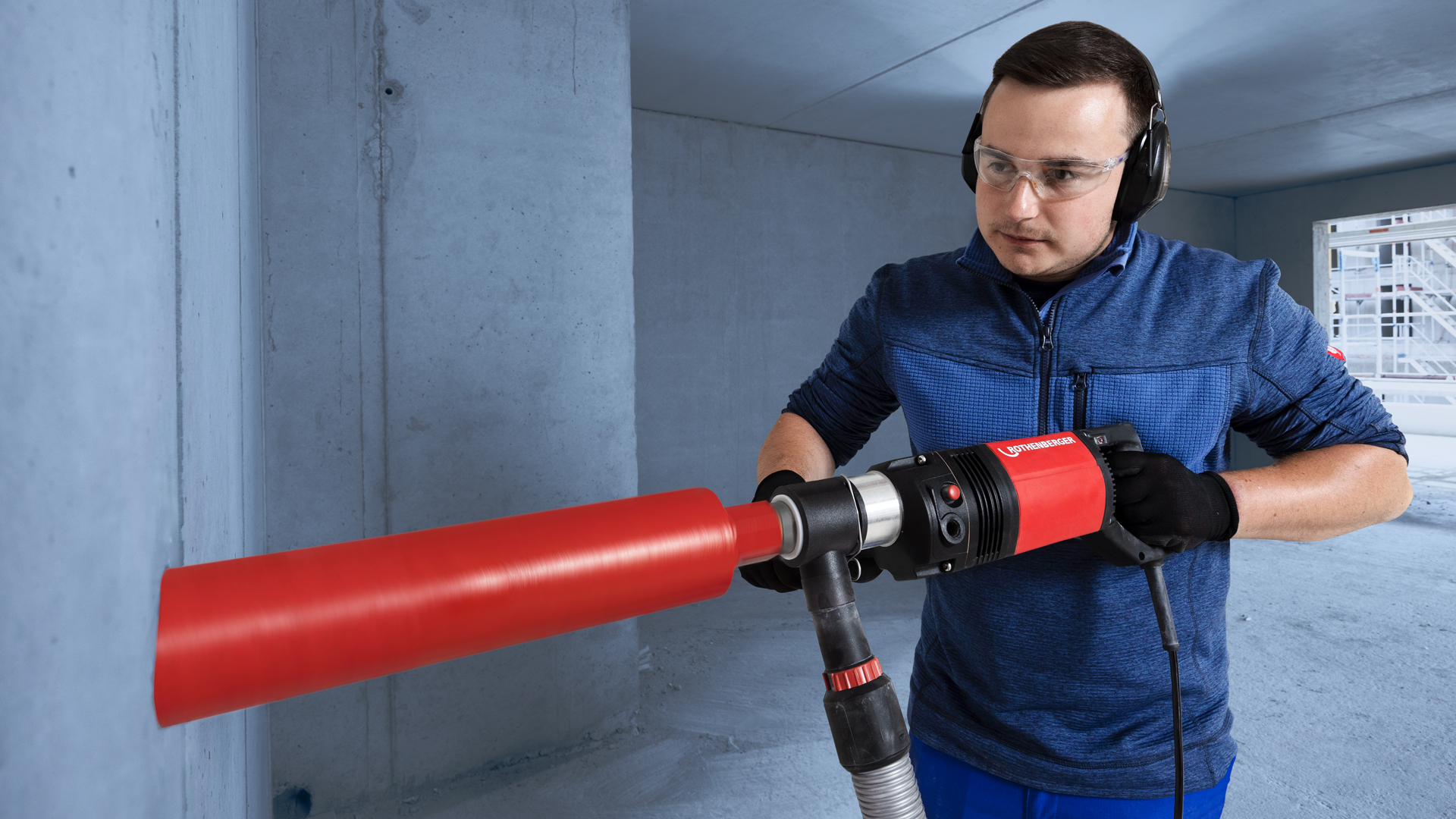

Dry drilling has become increasingly popular in recent years. And it' s no wonder, because the advantages over wet drilling are obvious. Dry drilling produces less dirt and no wetness. Therefore, drilling can be done practically anywhere. Even in inhabited houses and flats with carpeted or parquet floors, it is no problem to use it.

Unlike wet drilling, no water supply is needed at the place of use. Only a power connection is necessary. The uncomplicated pre- and post-processing of dry drilling saves time and effort and allows you to take on more jobs per day. That pays off.

Whether reinforced concrete, masonry or sand-lime brick: the DX High Speed Dry diamond dry drill bits can be used to drill without any problems. There is a suitable variant for every application. DX High Speed Dry dry drill bits are available for the most common threaded sockets in various diameters and a depth of 150 mm or 330 mm.

3D diamond matrix for precise and easy-cutting drilling

The special feature of the DX High Speed Dry drill bits is the precise, three-dimensional symmetry of the diamond distribution, the 3D diamond matrix. Due to this special arrangement of the diamonds on the drill bit, the wear of the segments during drilling is continuous and even. This means less force is required for drilling and less material wear.

The segment height of the DX High Speed Dry drill bits is 10 mm, for a high cutting performance and long service life. The over-rotation of the drill bits results in balanced rotation, which further reduces wear.

Advantages of the DX High Speed Dry drill bits:

• 3D diamond matrix: Three-dimensional positioning of the diamonds for easy-cutting drilling, little effort and long service life
• Overturned drill bits ensure precise concentricity and reduce wear and tear
• Air vents eliminate drilling dust and provide cooling
• Available in diameters 32 - 205 mm
• 1.1/4" UNC and 1/2" threaded mounting is suitable for all ROTHENBERGER drill motors

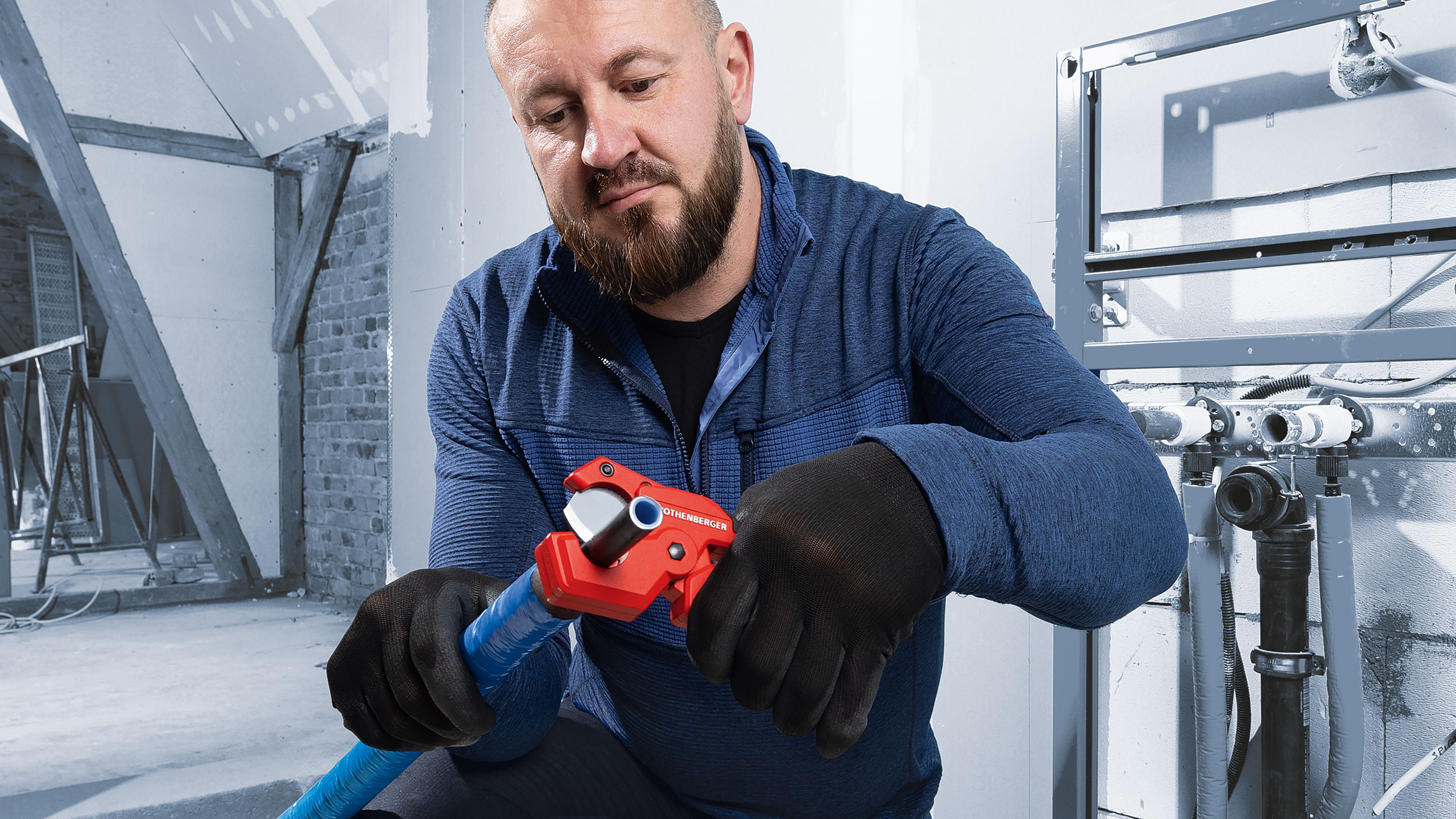

Minimaler Kraftaufwand für exakte Schnitte von Mehrschichtverbundrohren

Diese Merkmale zeichnen die ROCUT 26 MSR aus

• Weniger Kraftaufwand: Geschliffene, geschwungene Stahlklinge für reduzierte Schneidkraft
• Präzise Schnitte: Optimierte Klingengeometrie ermöglicht rechtwinklige Schnitte mit geringer Nachbearbeitung


• Langlebig und leicht: Robustes Aluminiumgehäuse sorgt für hohe Lebensdauer und geringes Gewicht


• Kein Abrutschen: Gummierter Griff garantiert sicheren Halt, auch bei intensiver Nutzung


• Einfacher Transport: Eine Transportsicherung fixiert die Klinge sicher, um Verletzungen zu vermeiden.
