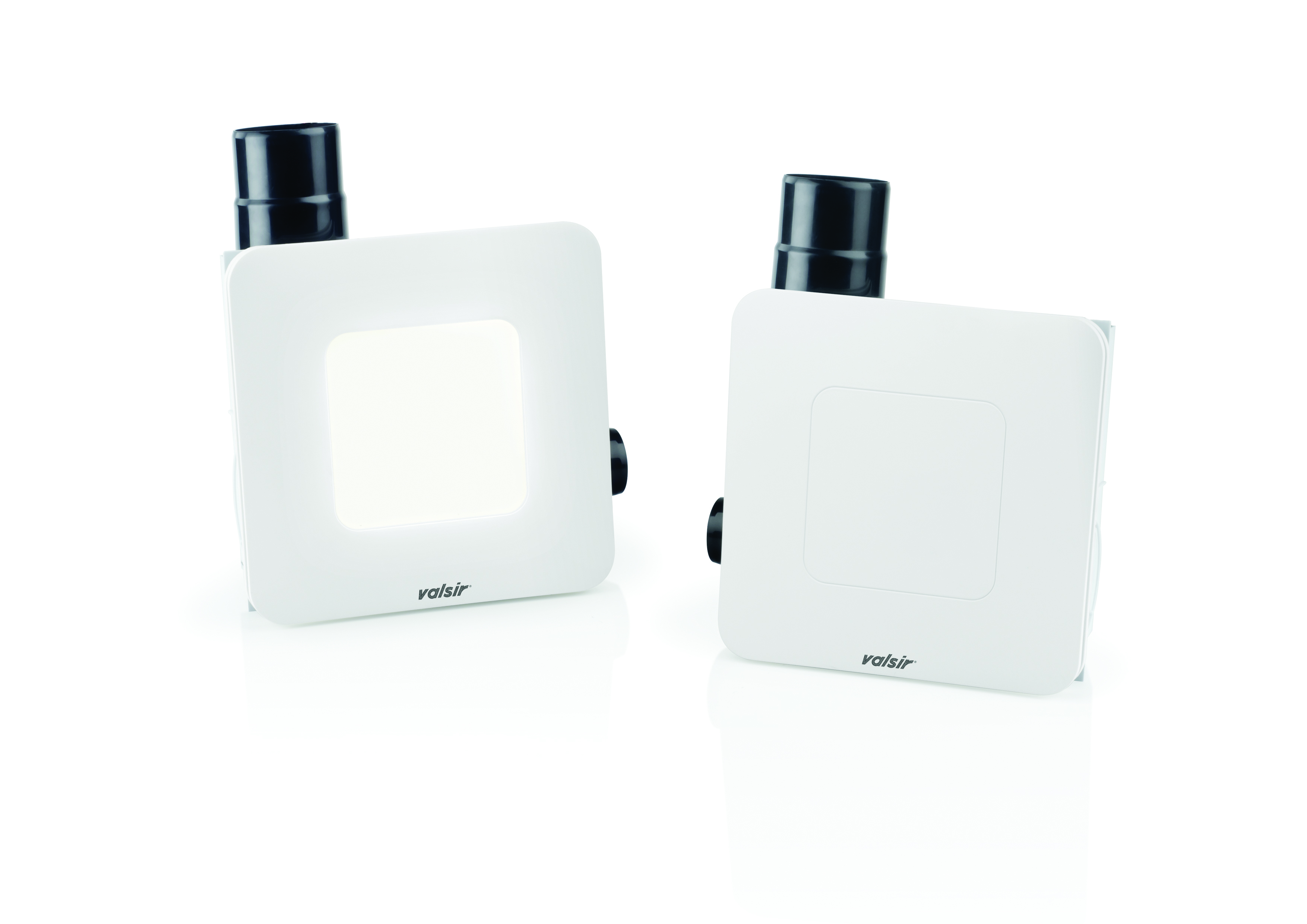

Ariapur is the ultimate solution for eliminating unpleasant odours that ensures clean air inside every bathroom without sacrificing design and comfort. Ariapur's operation is simple and efficient, as well as being extremely quiet, and the overall dimensions are small.

Ariapur is an aerator that captures odours directly from the toilet, sucking them in and eliminating them before they spread. At the same time, it eliminates the steam generated during the use of showers and baths through the ventilation system on the suction plate.

A version of Ariapur is also available with a high-efficiency LED light to illuminate the entire bathroom.

Ariapur is compatible with the Tropea S and Winner S flush cisterns.

ADVANTAGES OF THE ARIAPUR SYSTEM

• COMBINED EXTRACTION. Combined extraction from the WC pan and room for maximum ventilation efficiency inside the bathroom.
• HYGIENE AND CLEANING. The cover plate prevents the formation of dust, typical of traditional fans. The filter can be washed with water and soap.
• EASY TO INSTALL. Easy installation and maintenance thanks to quick coupling of motor and electrical connections. Thanks to the non-return valve, it can be connected to the waste system.
• CONNECTION OPTIONS. Three different connection options to the toilet (DN 50), possibility of connecting the outlet (DN 75-80) to the side or rear of the fan housing.
• 12W LED LIGHT. The Ariapur100LED version incorporates a high-efficiency 12 Watt, neutral white LED light to illuminate the entire room.
• SUITABLE FOR EVERY BATHROOM. The snap-on cover plate allows both ceiling and wall installation. The plate can be painted and blends in perfectly with any style.
• EFFICIENT SUCTION. The Ariapur80 version guarantees 65-80 m3/h air exchange, while the Ariapur100LED version achieves 85-100 m3/h.
• CHOICE OF ACTIVATION. Actuated through a switch or motion sensor with integrated scheduled shutdown from 0 to 20 minutes (in the Ariapur100LED version).

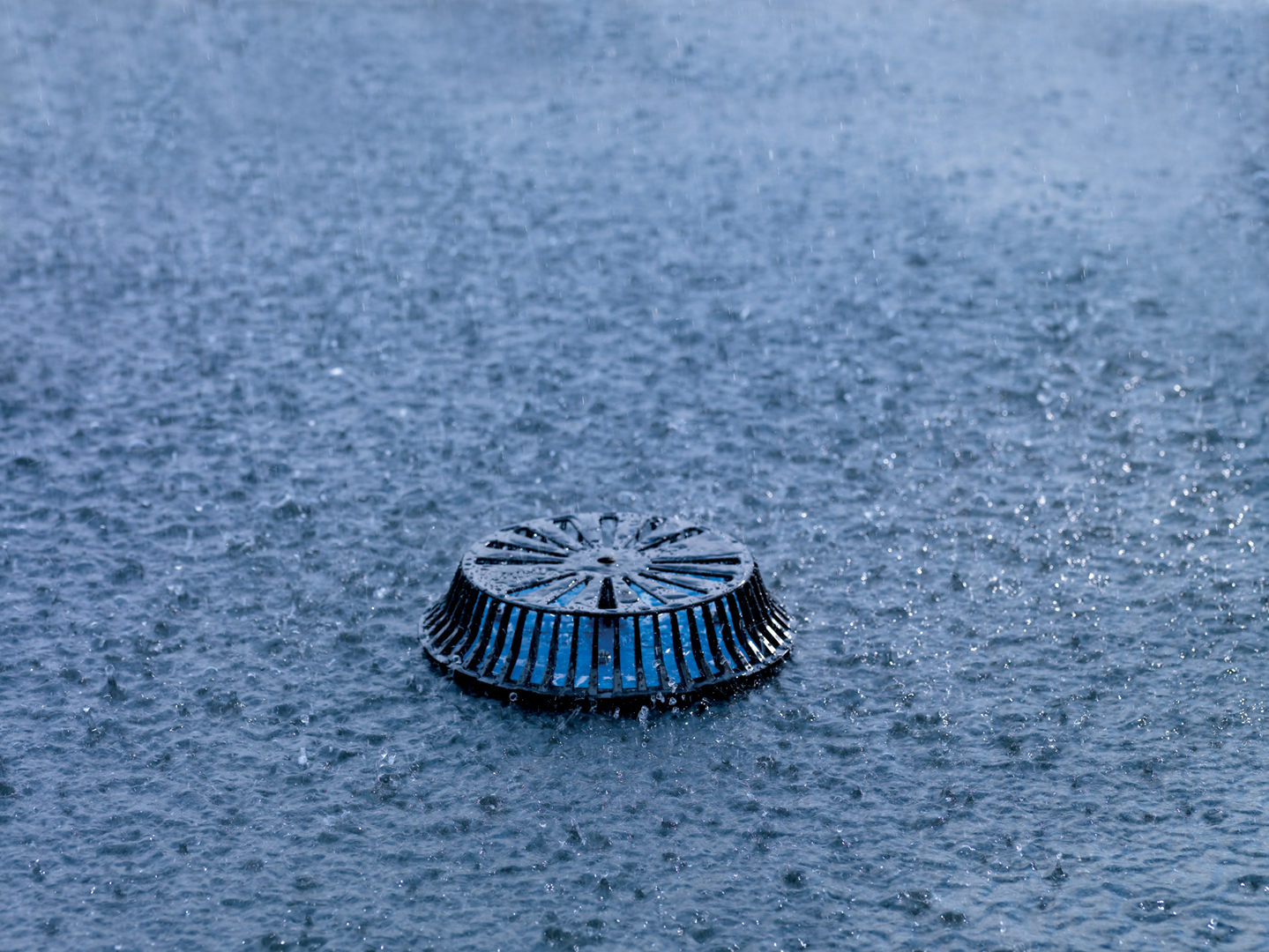

Rainplus represents the most modern technology in the constructions sector and in the drainage of rainfall from the roofs of medium and large size buildings. The system makes use of the building height as the driving force, which together with the effect of negative pressure, allows high speed flow rates to be reached thus maximizing drainage efficiency. Rainplus allows the entire flow of water to be directed to any part of the building whatsoever, thus enabling the most modern rainwater harvesting systems to be installed as required by the Green Buildings Program. The Rainplus siphonic drainage system is made up of special outlets that are patented, designed and tested to American Standard ASME A112.6.9 and European Standard EN 1253 and connected to HDPE high density polyethylene pipes. The outlets also incorporate special components that allow installation on any type of roof and waterproofing sheet.

THE ADVANTAGES OF RAINPLUS

• Cheap. When compared to conventional systems, Rainplus requires a lower number of roof outlets and allows a substantial reduction in pipe diameters, in the number of fittings required and in the number of downpipes: this results in savings of up to 80% on vertical pipes and from 20% to 30% across the entire system.
• Space saving. The roof outlets are connected to single horizontal collector pipes that are fitted without fall and the downpipes are positioned anywhere along the building perimeter, thus avoiding any interference.
• High performance. When in operation drainage pipes flow at 100% over the entire system. Draining speed is therefore greater resulting in the self cleaning action of the pipework.
• Sustainability. The ease in directing pipes to storage tanks makes the collection of rainwater easier for reuse in irrigation systems, fire ponds and tanks for non-potable uses.
• Time and labour saving. Construction programmes are accelerated due to reduced installation times moreover. Less groundwork is required due to the reduced number of embedded pipes.
• Increased design flexibility. Complete control over downpipe location and absence of embedded pipes causes increased design flexibility of the siphonic system.
• The Valsir Rainplus system and HDPE are produced with completely recyclable materials which can be recovered at the end of their useful life. The production processes employed are energy efficient and have reduced impact. Valsir has adopted the Green Building principles in terms of respect for the environment and conservation of resources, pipes and fittings are in fact certified by the prestigious Singapore Green Building.

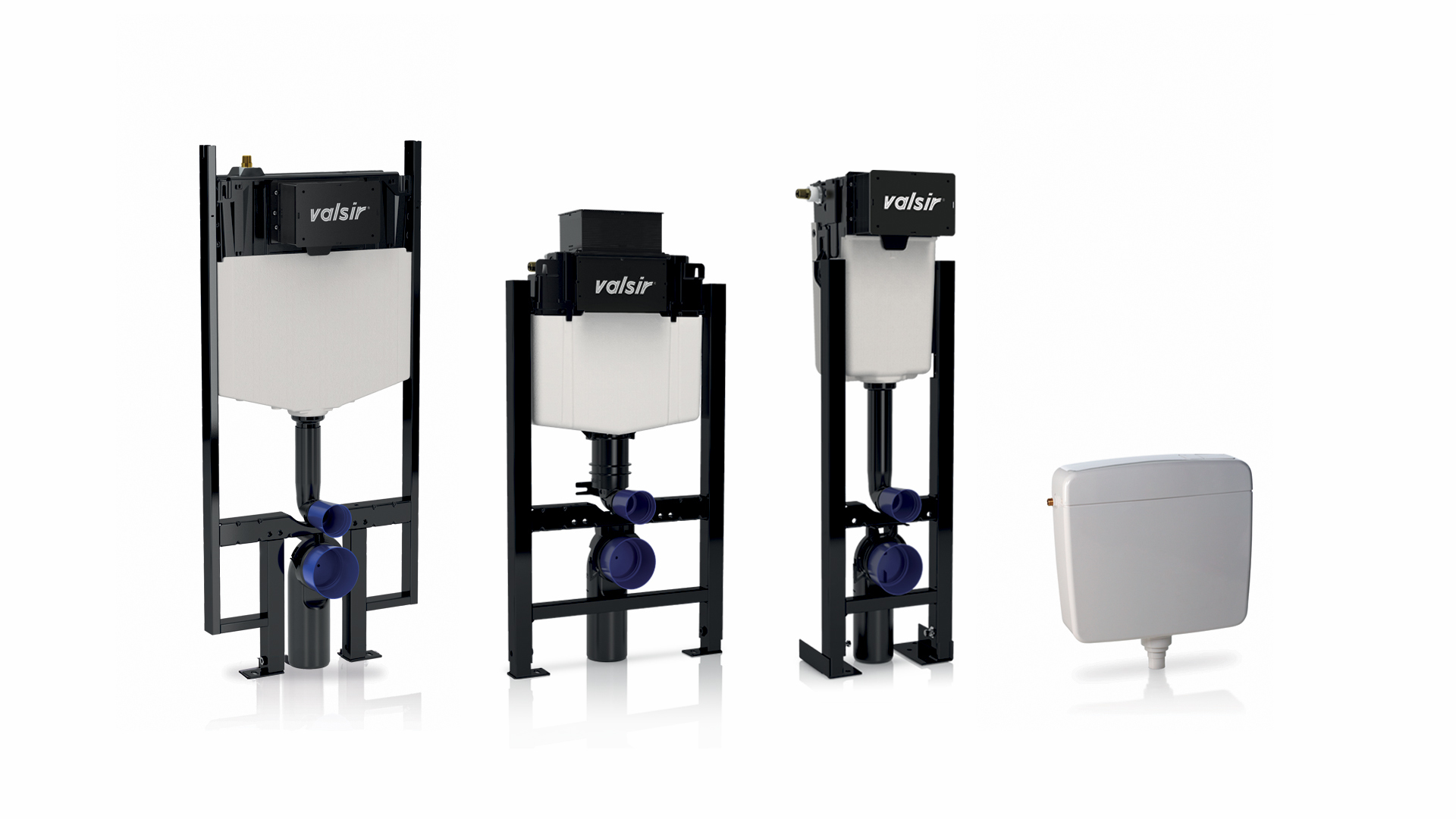

Manufactured to high technological and aesthetic standards, Valsir cisterns are available in many different versions: exposed, close-couple and concealed. Much attention has been dedicated to water saving: Valsir produces a range of cisterns that generate a flush volume of only 4.5 l. With the dual flush button is also possible to choose the volume according to necessity.

Valsir flush cisterns are designed and manufactured to comply with all functional and aesthetic requirements. They have many international patents, are manufactured to high technological standards and undergo a multitude of laboratory tests. Thanks to its characteristics, the concealed models can offer an improvement of the comfort in terms of noise insulation.

Characteristics

• Innovative patented outlet valve
• Components made of materials preventing theformation of lime scale and guaranteeing reliabilityover time
• Ease and flexibility of installation
• Suitable for all pan types
• Wide range of push and design plates in metal, chrome, ABS, aluminium, glass, wood, stone or acrylic
• In compliance with the EN 14055 standards
• CE marking

Over 35 years of experience in the production of waste systems for all types of installation

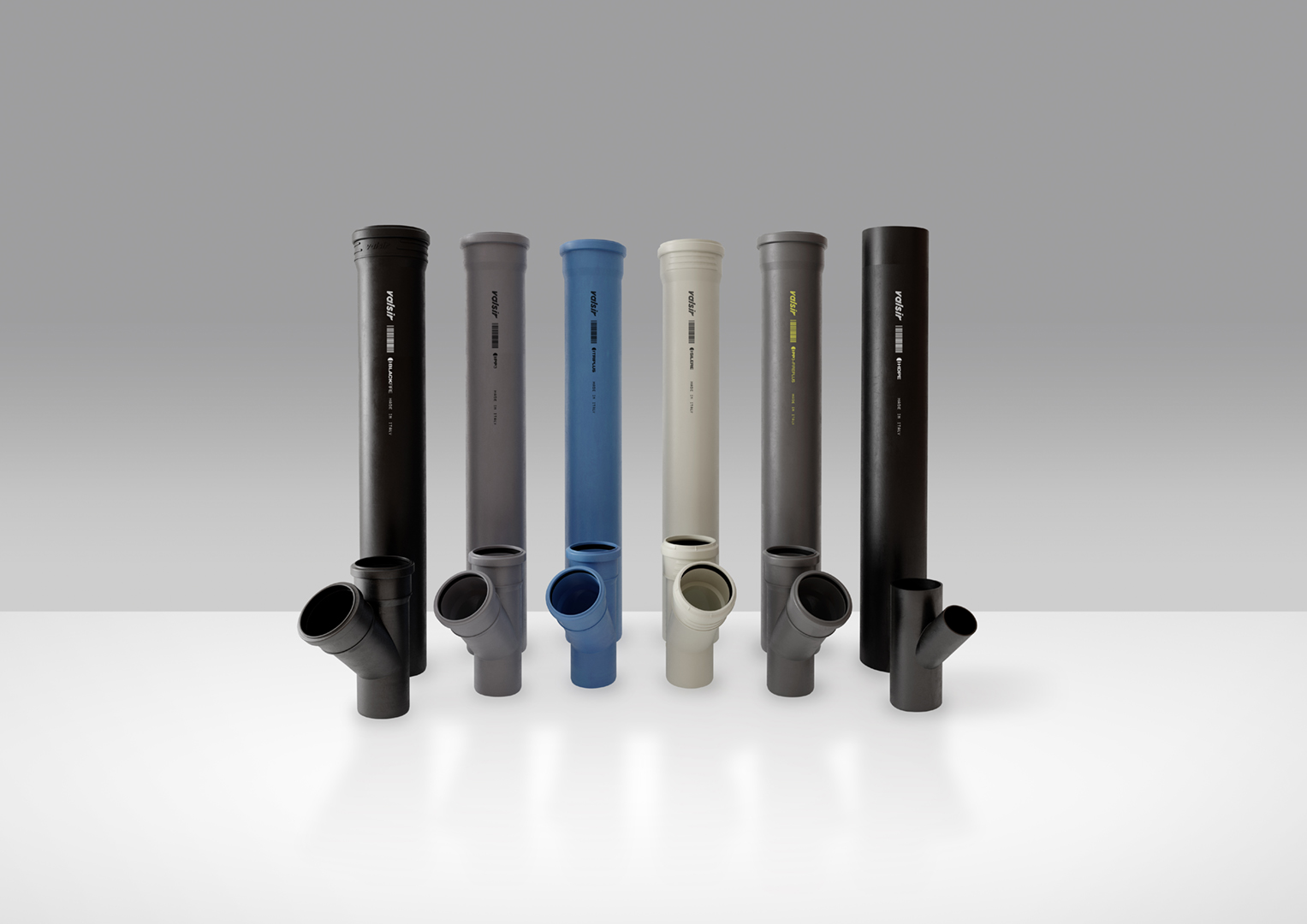

The widest range of pipes and fittings for waste systems and rainwater drainage: to be welded, push-fit, multilayer and soundproof. Extreme versatility, ease of installation and a wide choice of special pieces allow the realization of any type of system.

BLACKFIRE

• Excellent behaviour in the event of exposure to fire, which allows for class B1 according to DIN 4102-1
• Wide range of pipes from D 32 mm to D 160 mm, complete with fittings and accessories
• Remarkable soundproofing performance: the system’s characteristics allow for noise levels below 10 dB(A) at flow rates of 2 l/s according to EN 14366
• Excellent UV resistance
• Extremely quick and extremely easy to install
• White internal layer facilitates video inspection operations

TRIPLUS

• Excellent soundproofing performance
  Thanks to its characteristics the system has noise levels below 10 dB(A) at flow rates of 2 l/s according to EN 14366
• High mechanical strength even at low temperatures down to -25°C
• Extremely quick and extremely easy to install
• Wide range of pipes from Ø 32 mm to Ø 250 mm, complete with fittings and accessories
• Product certified by the Green Building Council of Singapore

SILERE

• Top of the range sound insulation performance, with noise levels of only 6 dB(A) at flow rates of 2 l/s according to EN 14366
• Wide range of pipes from D 58 mm to D 160 mm, complete with fittings and accessories
• High mechanical strength even at low temperatures down to -20°C
• Extremely quick and extremely easy to install
• Excellent behaviour in the event of exposure to fire, which allows for class C-s3,d0 according to EN 13501-1
• High chemical resistance to substances dissolved in civil and industrial waste water

PP3

• Good sound insulation performance, with noise levels of only 11 dB(A) at flow rates of 2 l/s according to EN 14366
• Wide range of pipes from D 32 mm to D 160 mm, complete with fittings and accessories
• High mechanical strength even at low temperatures down to -10°C
• Extremely quick and extremely easy to install
• High chemical resistance to substances dissolved in civil and industrial waste water
• White internal layer facilitates video inspection operations

PP3 FIREPLUS

• Fire-resistance class B-s1,d0 according to EN 13051
• A broad range of pipes and connections: from D 40 mm to D 250 mm
• Good sound insulation performance, with noise levels below 10 dB(A) at flow rates of 2 l/s according to EN 14366
• High impact resistance, even at extremely cold temperatures, down to -10°C
• White internal layer facilitates video inspection operations

HDPE

• High mechanical strength even at low temperatures down to -40°C
• High chemical resistance to substances dissolved in civil and industrial waste water
• Excellent UV resistance
• Wide range of pipes, fittings and accessories from D 32 mm to D 315 mm
• Product certified by the Green Building Council of Singapore

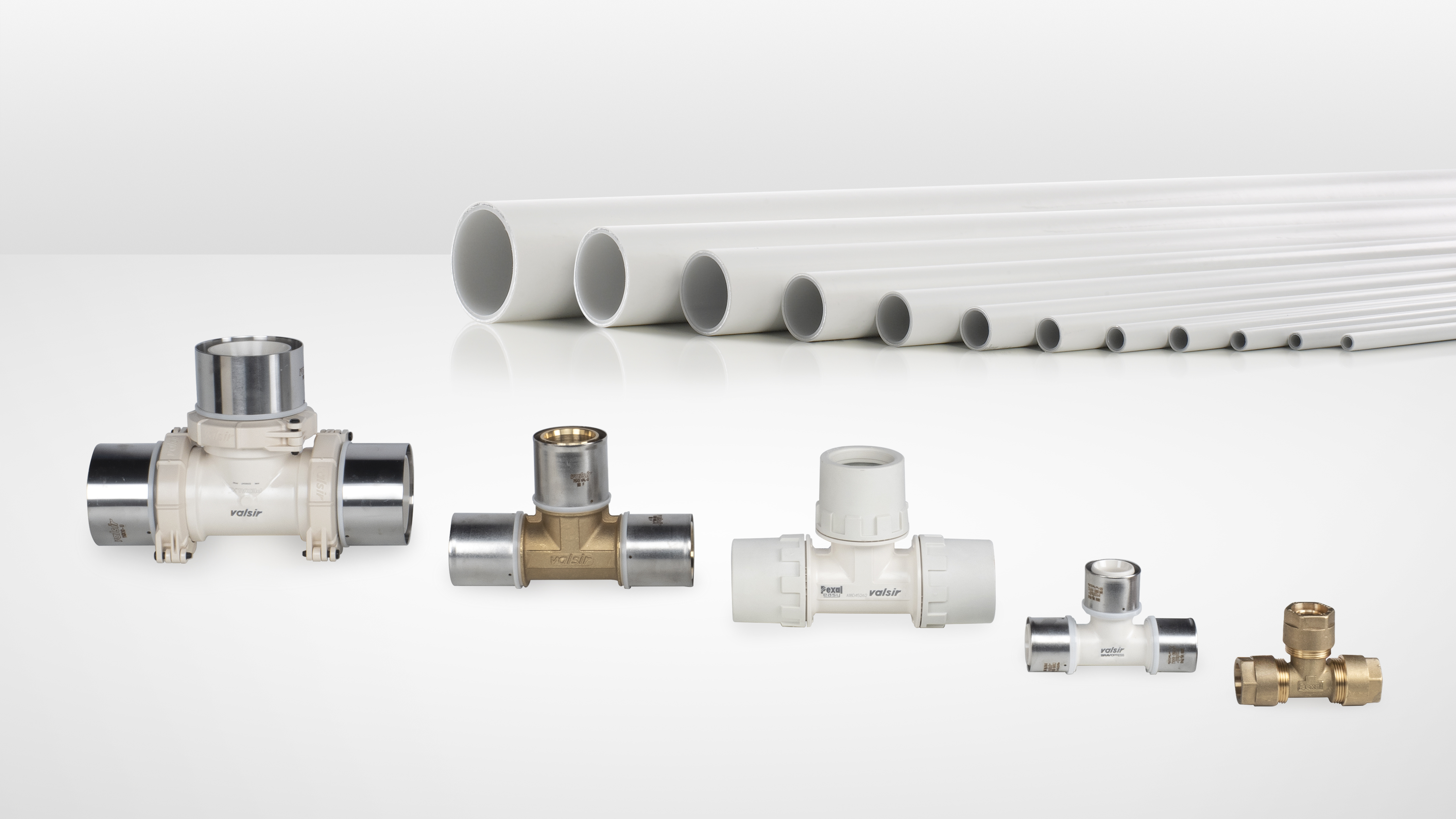

A complete range of pipes and fittings for water supply, high and low temperature heating and cooling systems, compressed air and industrial systems. Flexibility, high speed and extreme ease of installation.

PEXAL

• It combines the advantages of metal and plastic pipes
• Total barrier to oxygen and light provided by the intermediate layer in aluminium
• Ideal for floor heating and cooling systems
• Certified to transport drinking water
• Maximum operating pressure of 10 bar with temperatures of 95°C
• Excellent flexibility in bending phase (also manual) and long term stability
• Range of diameters from D 14 mm to D 90 mm

MIXAL

• It combines the advantages of metal and plastic pipes
• Total barrier to oxygen and light provided by the intermediate layer in aluminum
• Ideal for floor heating and cooling systems
• Certified to transport drinking water
• Maximum operating pressure of 10 bar with temperatures of 95°C
• Excellent flexibility in bending phase (also manual) and long term stability
• Range of diameters from D 14 mm to D 32 mm

THERMOLINE

• Extremely light and easy to work with
• Oxygen barrier on the external layer
• Ideal solution of floor heating and cooling systems
• Resistance to temperatures as high as 95°C with peaks of 100°C
• Range of diameters from D 12 mm to D 25 mm

METALPERT

• Combines the advantages typical of metal pipes with those of plastic pipes
• Total barrier to oxygen thanks to the intermediate layer in aluminium
• One pipe alone for numerous applications: systems for water supply, high and low temperature heating and cooling and for the distribution of compressed air
• Certification for transporting drinking water
• Maximum operating temperature of 95°C and 10 bar



PEXALBRASS

• Compatible with a wide range of pressing profiles (H, TH, U, C, VAL)
• In the event of incorrect or no-pressing, it leaks
• Anti-loosening profile with double ring seal
• Wide range of fittings and accessories
• Certified to transport drinking water
• Range of diameters from D 14 mm to D 90 mm

PEXALEASY

• Reduced pressure loss thanks to total bore passage
• Total absence of oxidation and corrosion
• Excellent characteristics of mechanical and ageing resistance
• Great speed and ease of installation
• Chemical resistance to most common substances dissolved in water
• Certification for transporting drinking water
• Range of diameters from D 14 mm to D 75 mm

BRAVOPRESS

• Compatible with a wide range of pressing profiles (H, TH, U, C, VAL)
• In the event of incorrect or no-pressing, it leaks
• Total absence of oxidation and corrosion
• Chemical resistance to most of the substances dissolved in water
• Certificate to transport drinking water
• Range of diameters from D 16 mm to D 63 mm

PEXALTWIST

• Extreme ease of installation without any tool
• Removable fittings
• Anti-loosening profile with double ring seal
• Certificate to transport drinking water
• Range of diameters from D 14 mm to D 32 mm

PEXALXL

• Safety. The Pexal XL fittings are made with a special hose barb using a profile with two seals to ensure maximum safety and reliability over time. The system is completed by PPS collars, ensuring mechanical strength and system uniformity
• Prefabrication. The closure with collar allows the prefabrication of fittings directly on the counter, resulting in great simplification of the installation procedures, in case of installation at height, and a significant accident risk reduction
• Ease of use. The Pexal XL is a simple and user-friendly system. The assembly of modules requires no special equipment, as sealing collars are closed manually. Moreover, the technopolymer lightweight is a further advantage
• Modularity. The modular philosophy that characterises the Pexal XL range ensures extreme installation flexibility while using just a few items. The assembly versatility allows wide system design freedom, and easily remedying the unforeseen events at the site
• Hygienic properties. Pexal XL press fittings are certified for drinking water supply, therefore they can be used for domestic hot and cold water distribution systems. The material of these fittings ensures an outstanding level of hygiene, as well as an excellent resistance to the treatments against legionella
• Logistics. The modularity of Pexal XL is a benefit also for logistics: the possibility of creating all the necessary set-ups with a reduced number of items allows maximum efficiency even with a small warehouse
