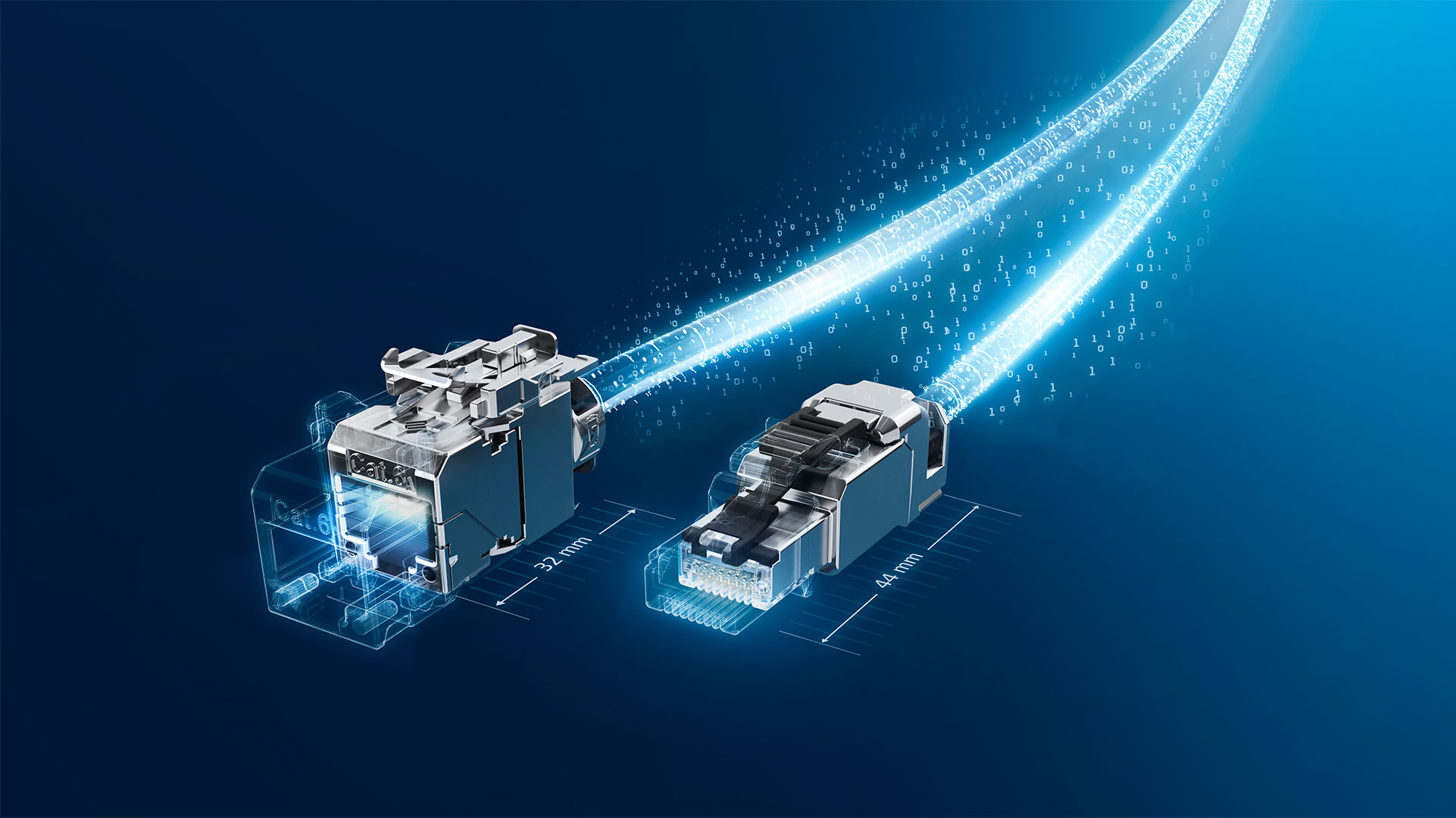

Data networks often have to be installed in extremely limited spaces. This is particularly critical when connecting the cables to RJ45 connectors and modules that can be assembled in the field: For reliable data transmission, the minimum bending radius of the cable must not be fallen short of, but most connectors and modules on the market are relatively long. The SL series from Telegärtner not only offers transmission values that far exceed the requirements of the standards, connectors and modules are also extremely short, so that there is enough space for correct, trouble-free cable routing.

SL series connectors and modules exceed the requirements of Category 6A for data rates up to and including 10 Gbit/s in both shielded and unshielded versions. Both variants correspond to DIN EN 50173-1:2018-10.

RJ45 module AMJ-SL

• Extremely short overall length of only 32 mm
• Optimised contact design to avoid spark erosion in the area of data transmission
• Extremely mechanical robust zinc die-cast housing with refined surface
• Secure latching thanks to a metal barbed snap-in latch
• One-piece snap-in/snap-out housing
• 4PPoE according to IEEE 802.3bt
• Suitable for 10 Gigabit Ethernet
• GHMT PVP certified
• GHMT Type Approval: certified and IEC and EN 60603-7-51 compliant RJ45 module Cat.6A for applications of ISO/IEC 11801 Parts 1-6 and EN 50173 Parts 1-6 (incl. 10GBase-T, 4PPoE)

The unshielded RJ45 module UMJ-SL

• Extremely short overall length of only 32 mm
• One-piece housing, so no housing components can get lost on-site
• Assembly in less than 90 seconds
• No need to untwist the wire pairs
• Tried-and-tested wire manager for exceptionally quick connecting of the wires
• Fits all Telegärtner AMJ and UMJ patch panels and outlets
• 4PPoE according to IEEE 802.3bt
• Suitable for 10 Gigabit Ethernet
• GHMT Type Approval: certified and IEC and EN 60603-7-51 compliant RJ45 module Cat.6A for applications of ISO/IEC 11801 Parts 1-6 and EN 50173 Parts 1-6 (incl. 10GBase-T, 4PPoE)

RJ45 Stecker MFP8-SL

• very short installation length of only 44 mm
• fine-graded cable strain relief for cable Ø up to 9 mm
• increased cable strain relief due to small barbs holding the cable sheath
• long release latch Insertion and withdrawal made easy in confined spaces
• pre-assembled protection cap Effective protection of contacts from dirt and damage in transit also whilst cable assembly
• standardised plug interface according to IEC 60603-7-51
• robust zinc die-cast housing hardened and tempered finish for mechanical protection
• 360° shielding Reliable data transmission even with outside electrical interference
• piercing contacts IPC
• full metal shielding between pairs of wires
• four-chamber wire manager Available with colour code T568A, T568B, PROFINET

Whether it's an intelligent home or a secure communication infrastructure in an office building - Telegärtner offers an extensive range of high-quality connection components for seamless, structured cabling in office buildings, as well as perfectly coordinated components for easy and quick installation of gigabit-fast home networks.

Portfolio home networks

• Modular outlets
  Mini distributors
  RJ45 modules and field assembly RJ45 connectors
  RJ45 patchcords
  Connection modules
  Fiber optic outlets
  Fiber optic patch cords
  Fieldassembly Fiber optic connectors

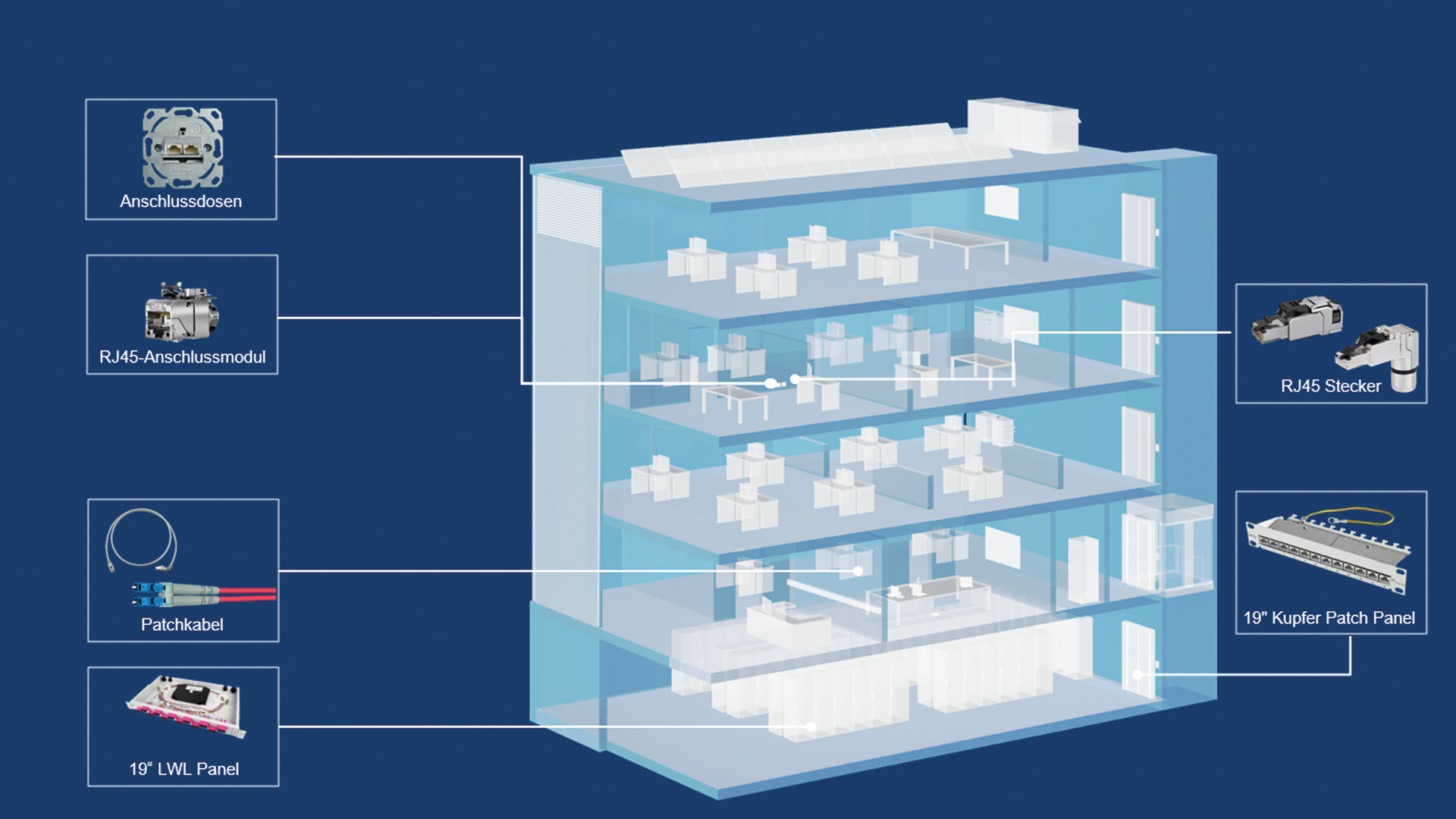

Enterprise cabling portfolio

• Fiber optic patch panel
• RJ45 patch panel
• Patch cords RJ45 and fiber optic
• Installation cable
• RJ45 modules and plugs for a wide range of requirements

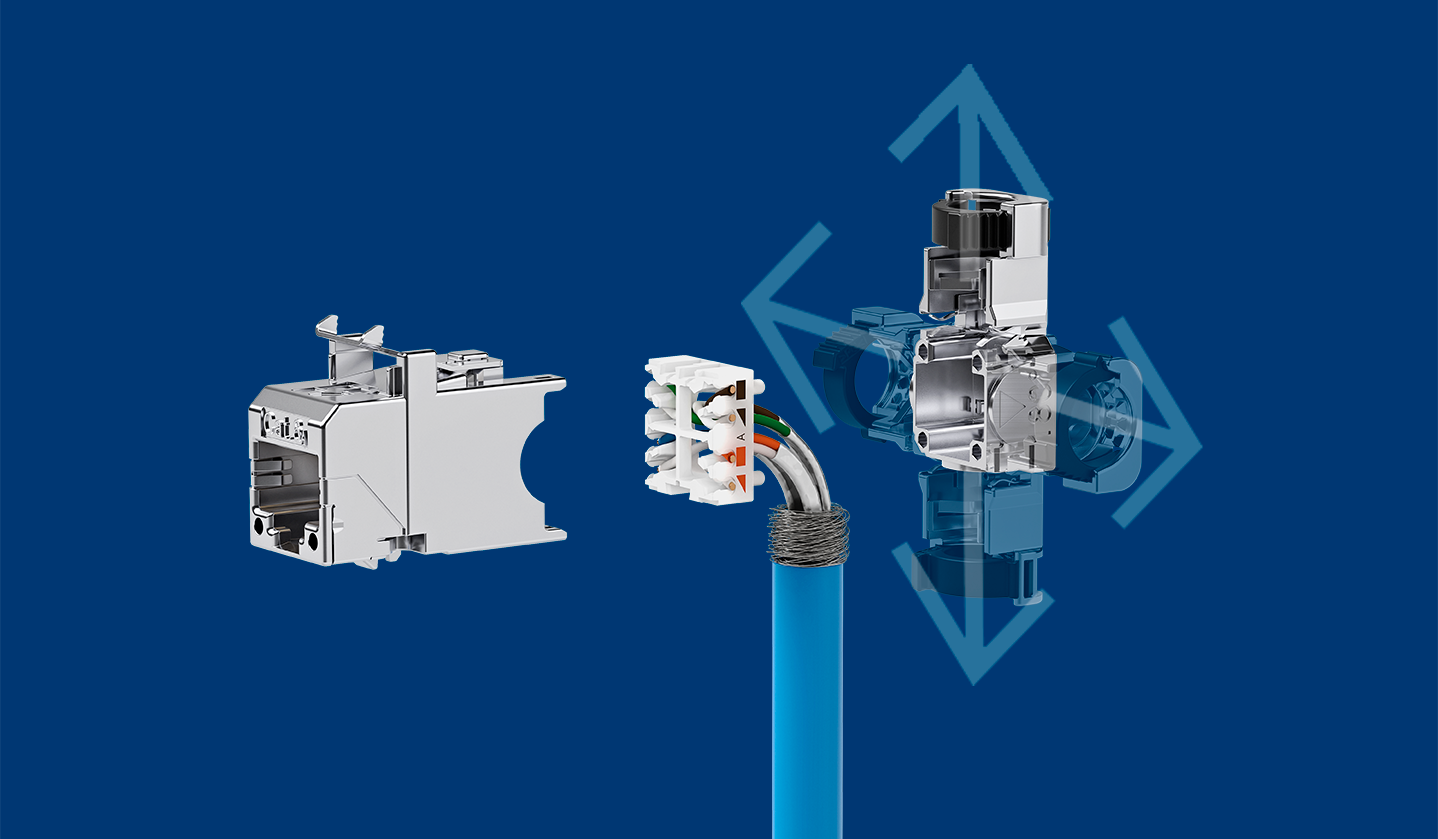

The portfolio of AMJ-SL modules has been expanded. The AMJ-SL 4x90 has a right-angled cable entry that can be rotated on site in 90-degree increments. This enables cable entry from the right, left, top and bottom, which makes installation in confined spaces much easier and in some cases even possible in the first place. The decision as to which cable outlet direction is the most suitable can be made on site, as the AMJ-SL 4x90 can be installed flexibly in any of the four ways.

With the AMJ-SL 4x90, there is no wrong cable direction and no more performance losses due to kinked cables. The cable feed is mounted on site at the top, bottom, right or left. Installation is extremely simple: the wire manager is always inserted in the same position so that it cannot be rotated accidentally, and the back section of the module housing is installed according to the cable direction. Markings on the module housing and back section make the whole process easy. The tried-and-tested SafeLock technology ensures safe and reliable contacting and installation.

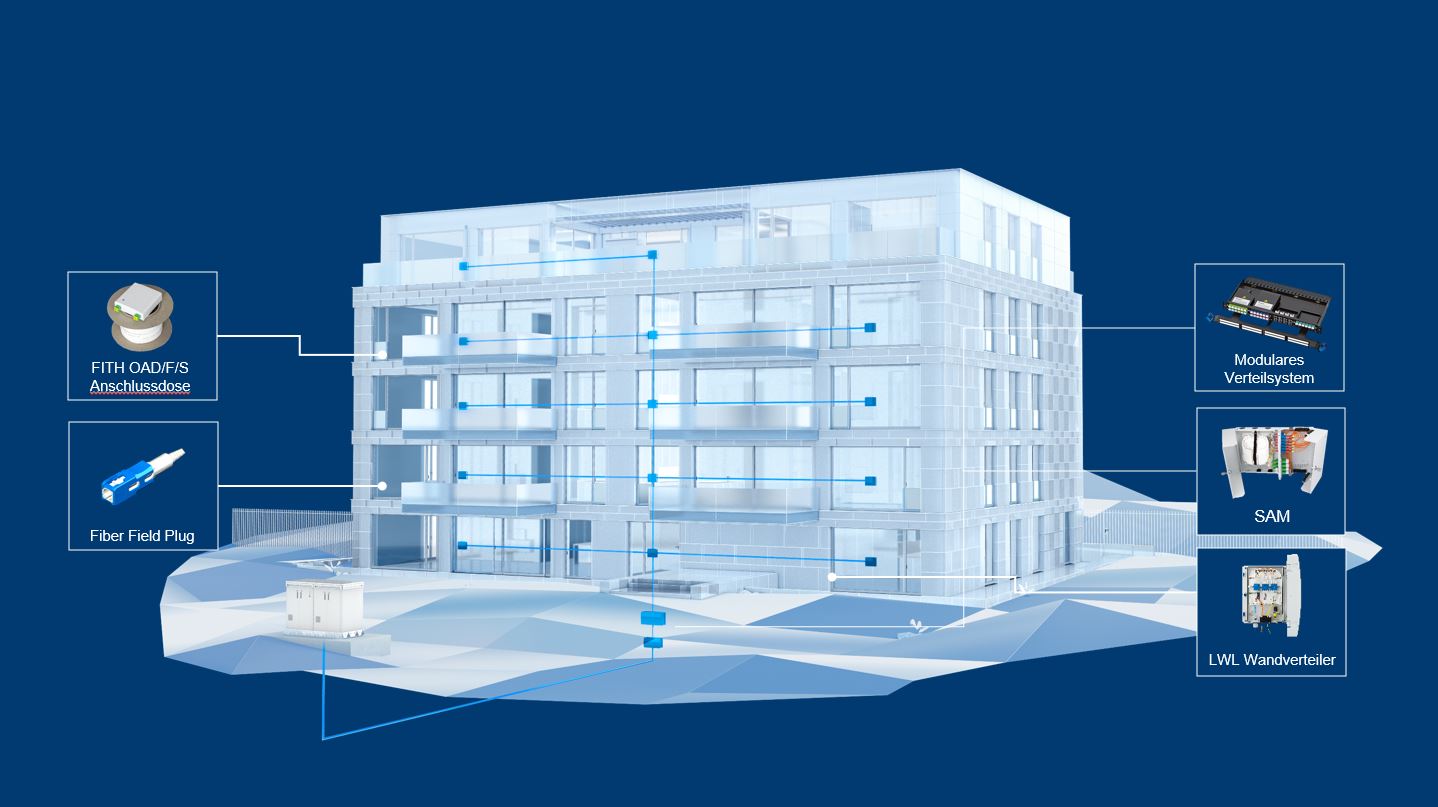

Cabling solutions for faster internet in buildings and apartments

High-quality cabling solutions by Telegärtner offer performance, flexibility and reliability for a long service life without failures. Easy-to-install, pre-assembled, modular solutions for needs-based expansion and for simple extensions, even while the system is running, offer the decisive plus in terms of economy and investment protection.

• Wall distributor - can also be equipped modularly for individual wishes
• Micro splice boxes for use wherever there is no space for classic distributors
• Fiber optic patch cords in standard lengths up to 10 m or in individual designs and lengths
• Modular building distributors
• foldable splice cassettes
• Pre-assembled fiber optic outlets
• Fieldassembly FO connectors (Fiber Field Plug FFP)

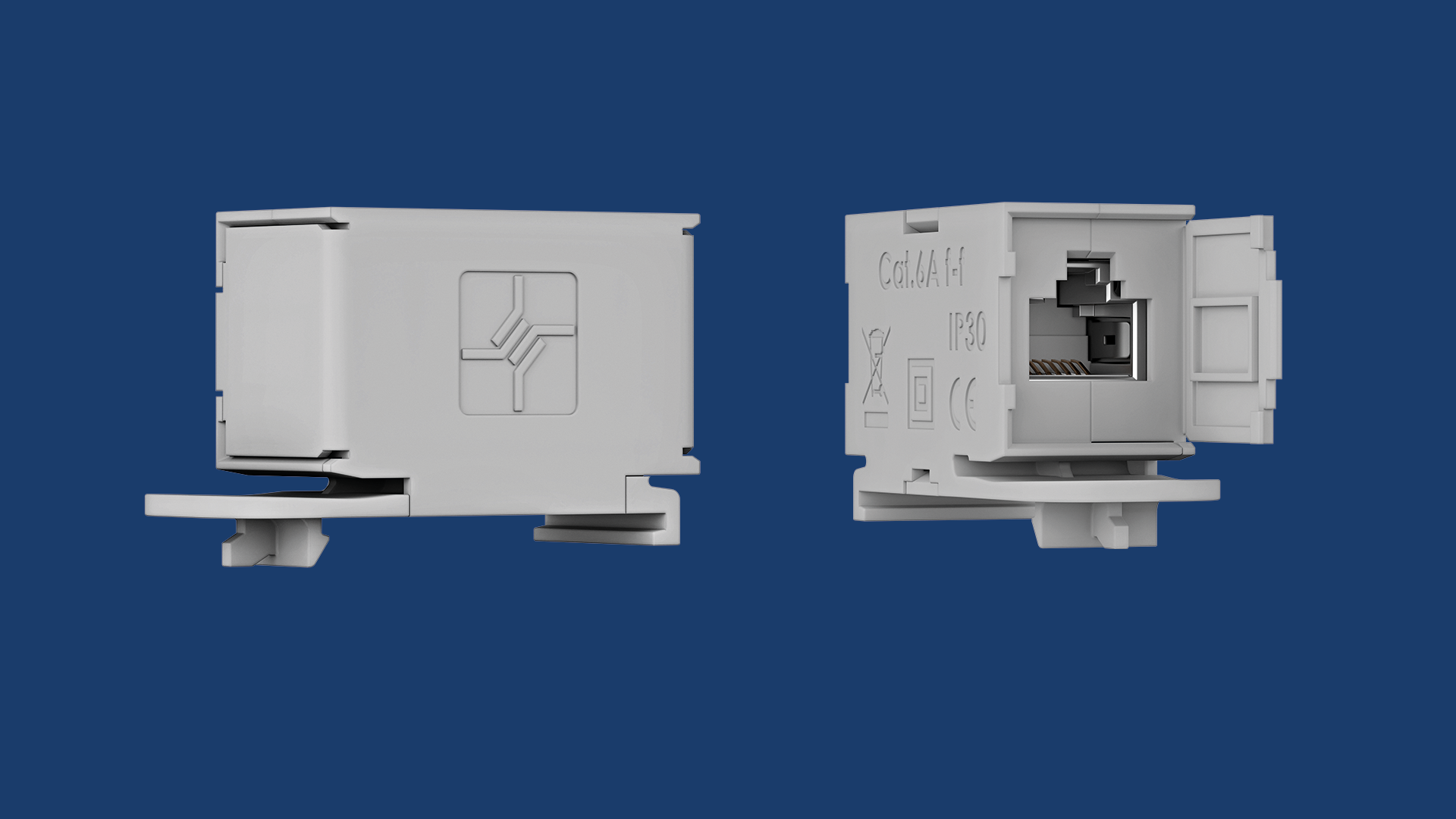

The smart metering couplings from Telegärtner have been specially developed for the data exchange of controllable generators, end devices and communication devices in smart metering systems and are used in the room for meters (RfZ) and the connection point for meters (APZ) at the meter locations. The smart metering couplings ensure reliable data transmission and enable particularly flexible data cabling of the distribution board.

 Advantages:

• RJ45 coupling for quick and easy cabling
• Universal fastening system for cross rail and mounting rail
• DIN VDE 0603-100-compliant (coupling and patch cable)
• Fiberglass-reinforced material for reliable hold on the mounting rail
• Dust protection flaps for unused connections
