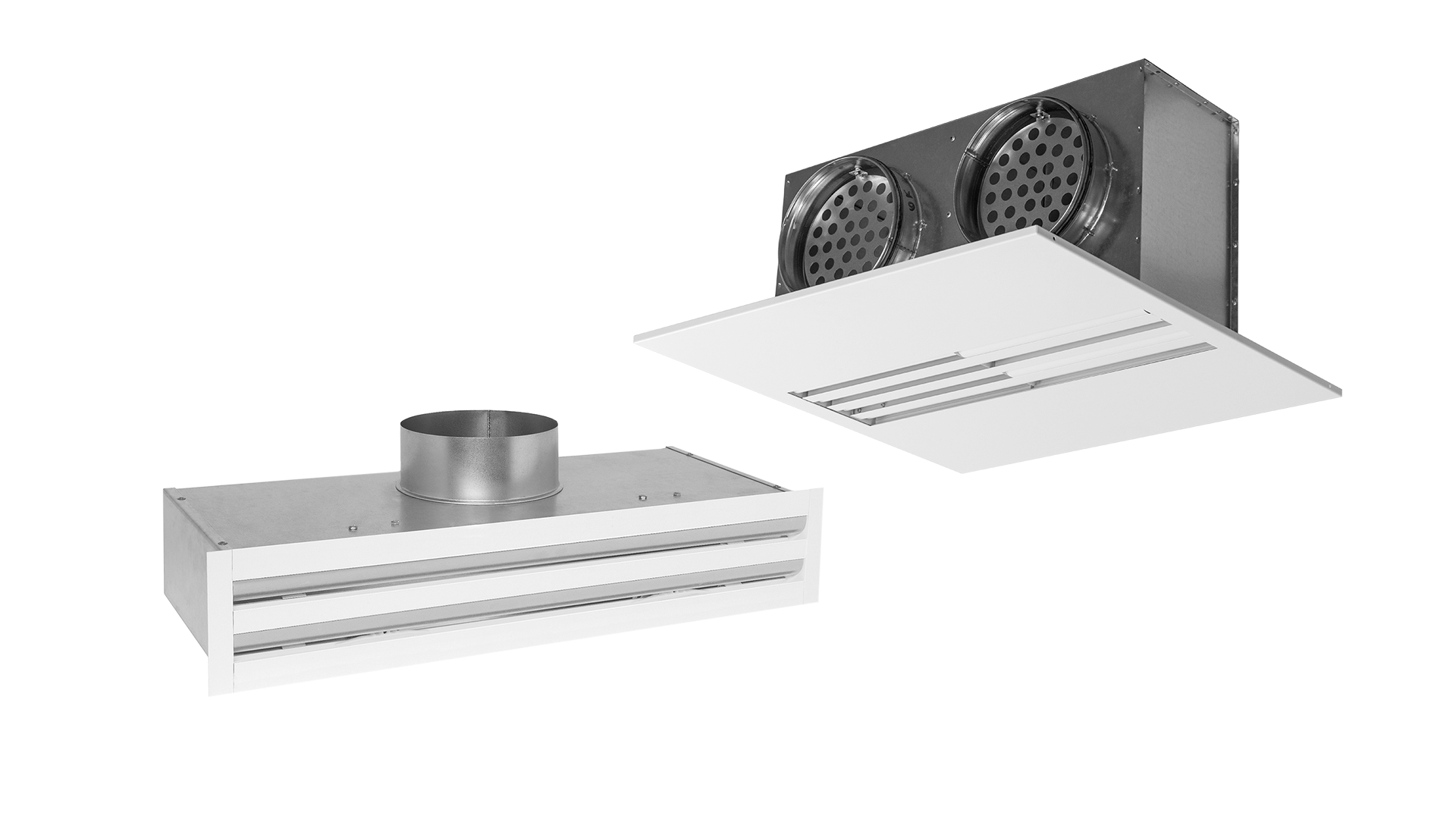

The LINED® slot diffuser ensures effective air distribution in rooms with the requirement of high air exchange. The supply air version has adjustable air control elements positioned in the center of each slot to ensure precise air distribution through the Coanda effect. The exhaust version has fixed air control elements and can be optionally equipped with a filter. The plenum box can be equipped with acoustic or thermo-acoustic insulation (fire resistance class M1 according to NFP 92503, equivalent to German fire resistance class B1), also the air flow can be adjusted by a throttle damper in the plenum.

The LINED® slot diffuser, with its four versions, adapts precisely to the various types of ceiling:

• LINED® Standard
• LINED® Slim as a frameless diffuser for a perfect integration into the ceiling
• LINED® TP as a complete replacement of a standard panel of a suspended ceiling with T-frame or FineLine
• LINED® Combined as diffuser with a special plenum box for exhaust and supply air in one unit

Design diversity with aesthetic appeal is offered by the different surfaces: painted steel is standard (powder-coated with RAL 9010 30% MATT-Look), possible are finishes according to RAL color chart (over 100 colors) and with special finish AldesArchitect®. LINED® slot diffusers can be adapted in this way to any room design and material situation. The fixing is concealed on the plenum box, either adjustable and accessible under the diffuser (S3) or with self-tapping screws (S2) on the sides of the plenum box.

Available sizes:

• From 300 mm to 2000 mm or band design thanks to center elements
  (end pieces, angle pieces).
• Versions with 1 up to 8 slots possible



Advantages at a glance:

• Effective push-push closure for quick access for filter change and cleaning purposes
• Supply air / exhaust air or both variants in one unit
• Band design possible thanks to center elements (end pieces and angle pieces)
• Tightness class C
• Hinged front panel ensures easy cleaning according to VDI6022 (examination requested)
• Configuration software Selector Koanda available
• AldesArchitect® special patterns and colours
