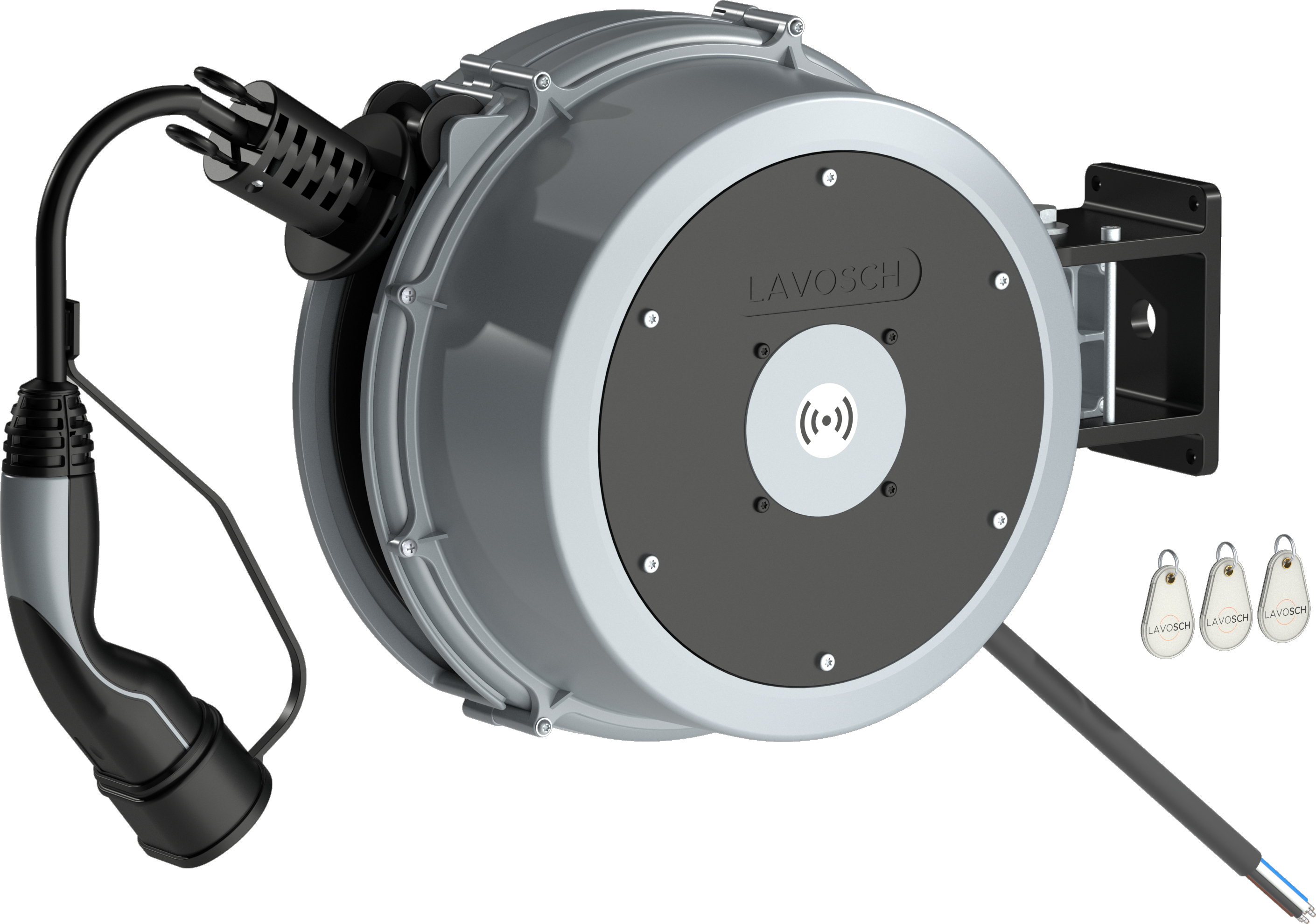

The compact and convenient eMobility charging system from Schill

With LAVOSCH Controlled 350, the charging cable is always ready for use: simply plug in, charge, unplug and drive off. The charging cable can no longer be forgotten, stolen by unauthorized persons or accidentally damaged by being driven over. This is not only easy on the nerves, but also extends the service life of the cable. LAVOSCH Controlled 350 is also ideal for static or dynamic load management.

• cable reel for eMobility with integrated charging electronics
• charging mode mode 3
• status LED
• thermal protection
• DC fault current detection 6mA
• fault disconnection method all-pole
• power connection 3P 400V AC: maximum charging power 11kW; maximum charging current 16A
• 8m extension cable (5G2,5+0,5) with type 2 charging coupling 3P 16A (11kW)
• 2m connection cable (5G2,5) without connector
• with charge release RFID
• incl. swivel wall mount
• optionally with electricity meter available

You can also find more details at https://www.schill.de/en/industry-solutions/lavosch

If you have any questions about the product or require technical advice, please contact the sales team from Schill GmbH & Co. KG at sales@schill.de or on +49 (0) 711 57 88 07-0
